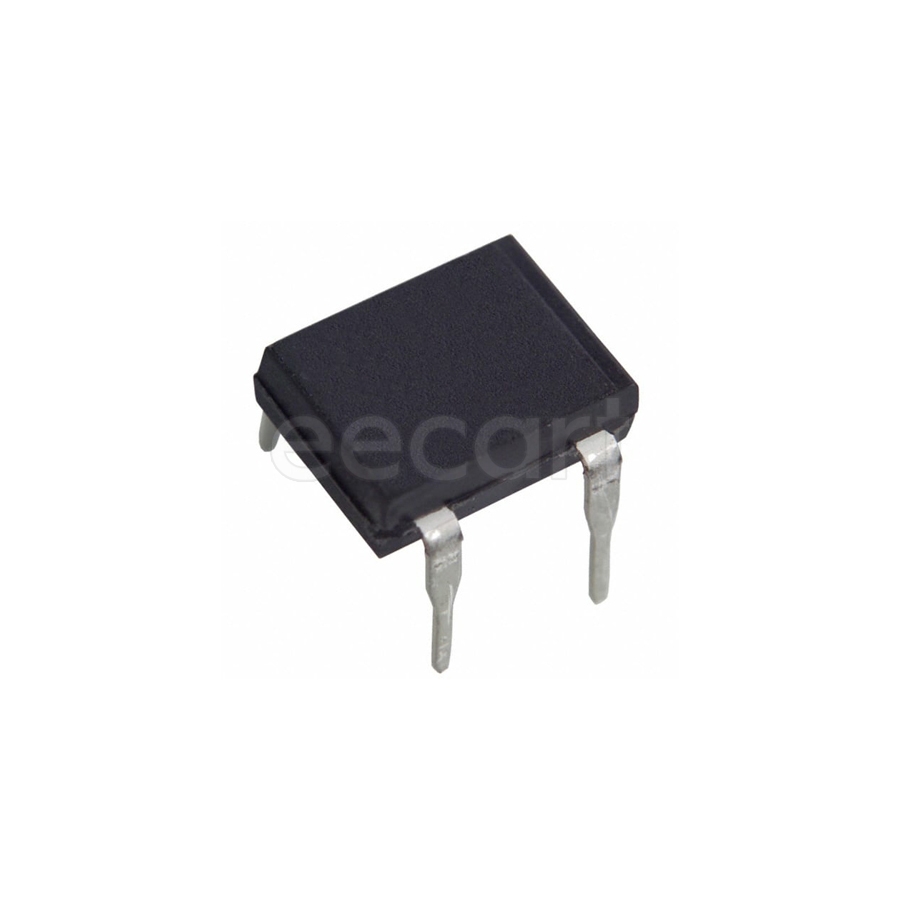

DF005M
Manufacturer:
Diodes Incorporated
Mfr.Part #:
DF005M
Datasheet:
Description:
Bridge Rectifiers DFM Through Hole Single Phase Bridge 50 V Forward Current:1 A Forward Voltage:1.1 V
| Parameter | Value |
|---|---|
| Capacitance | 25 pF |
| Voltage Rating (DC) | 50 V |
| Length | 8.51 mm |
| Width | 6.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 4 |
| Height | 3.4 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Current Rating | 1 A |
| Output Current | 1 A |
| Forward Current | 1 A |
| Forward Voltage | 1.1 V |
| Average Rectified Current | 1 A |
| Max Repetitive Reverse Voltage (Vrrm) | 50 V |
| Element Configuration | Single |
| Max Surge Current | 50 A |
| Forward Surge Current (Ifsm) | 50 A |
| Reverse Voltage | 50 V |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 10 µA |
| Reverse Voltage (DC) | 35 V |
| Schedule B | 8541100080 |
| Peak Reverse Voltage | 50 V |
| Max Reverse Leakage Current | 10 µA |
Stock: 1355
Distributors
pcbx
pcbxUnit Price$0.38216
Ext.Price$0.38216
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38216 | $0.38216 |
| 10 | $0.17184 | $1.71840 |
| 50 | $0.15988 | $7.99400 |
| 100 | $0.14876 | $14.87600 |
| 500 | $0.11200 | $56.00000 |
| 1000 | $0.09490 | $94.90000 |
| 3000 | $0.08649 | $259.47000 |
| 5000 | $0.07883 | $394.15000 |
